Bike 2.0 (Preview 253)

[Gorgonzola]

I’ve noticed a few funny things, for which I’m not sure if they’re bugs or just my bad handling of extensions:

1. If I lock the screen, unlock and go back to Bike, custom keybinds (like the left/right to expand/collapse in block mode) don’t work for a few tries.
2. If I cmd+tab to a different app and cmd+tab back to Bike, none of the windows get focus (the traffic lights remain greyed out). EDIT: This last thing seems to be true only if I’m switching virtual desktops while switching between Bike/other apps, and I can’t reproduce this reliably. Switching Stage Manager on/off seems to help.

[jessegrosjean]

@Gorgonzola

I couldn’t find the paste bug, but I found one related to deleting rows with ^+D:

Thanks, I think this is fixed for next release… (the hierarchy is preserved)

@Gorgonzola

EDIT: This also seems to strip the row immediately below the deleted one (‘One’ in this example) of any formatting.

I think this is actually correct behavior if I understand correctly.

For me inline formatting (bold, italic, etc) is not lost from “One”, but row type is lost. This is because the row “One” is being joined with the empty row. And in this case (since you are deleting forward from empty row) its type takes precedence. Really what is happening is row “One” is being deleted and the text of row “One” is being appended to the empty row.

Make sense?

[jessegrosjean]

@complexpoint

FWIW I am finding that I can’t paste from a public.utf8-plain-text clipboard (no other types present) if the clipboard text is less than 4 characters long.

Ha, good catch.

I’ve fixed for next release. Issue was related to swift NSXMLParser, when passing those strings it would throw no parse error. And do my .bike decoder was being used, when .txt should be used.

[Gorgonzola]

@jessegrosjean

Make sense?

Makes sense!

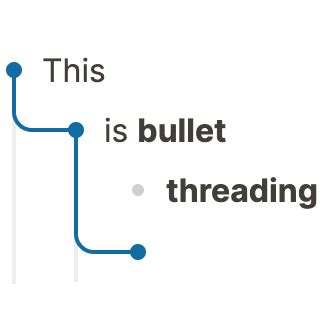

BTW, is an extension that does this possible in the current state of Bike?

[jessegrosjean]

@Gorgonzola

BTW, is an extension that does this possible in the current state of Bike?

Good question… in theory yes, but in a few minutes of messing around I’m running into problems. I’m going to defer until after 2.0 release to look into this too deeply.

[jessegrosjean]

@Erlend

I also have an issue with .md files declared as bikemd: When I have actual code in codeblocks, forwards slashes \ keeps getting added…

I think this is fixed for next release.

[Gorgonzola]

I tried messing with it. Managed to get the handles and indentation guides to light up, but couldn’t get it to draw the threads.

No rush, I’ll give it a few more tries.

[Gorgonzola]

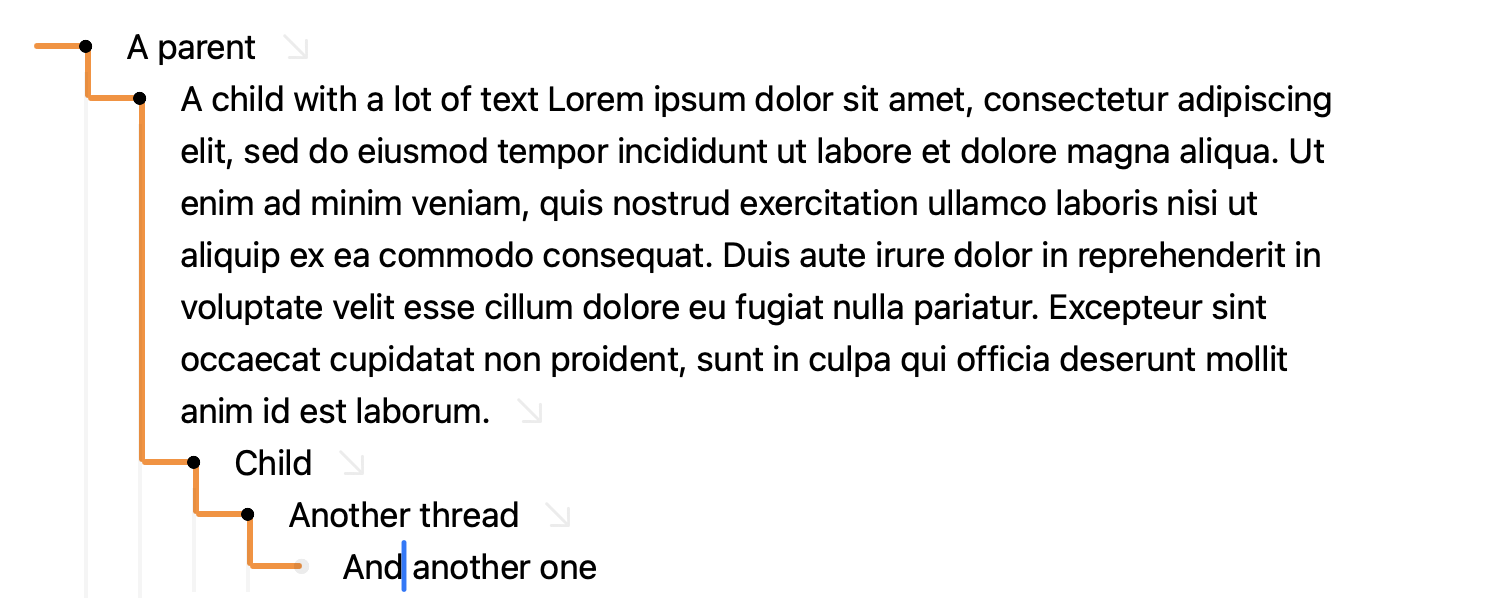

Current state of affairs: I made bullet threading work!

This was mostly done with AI, but I had to go in there to figure a few things out by myself.

The way this is structured is:

• app context figures out what the current row is and what its ancestors are
• feeds that information into style context to draw the lines
• uses userCache and watches for changes and tells style to draw changes once the caret/selection changes rows

I couldn’t figure out how to use only the style context to determine ancestor paths. For some reason AI insisted on using row('.parent() = true and <OUTLINE PATH TO FIND SELECTION> => { to match parents of selected rows which didn’t really work.

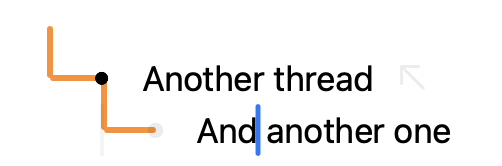

I also don’t know how to get rid of the top-most horizontal line. I swore there was a @level attribute somewhere, but that seems to be gone. Good thing about this is when you’re focused into a row, the vertical line points up, indicating that you’re in focus view, which isn’t too bad:

Still have some digging to do to understand how to make it draw nice rounded corners (currently it’s just a vertical and horizontal line joining) and how to make it style the bullet handles with the same color.

[jessegrosjean]

Wow, nice! Can’t wait to see the details

[Erlend]

Nice. This is cool! I completely forgot that I wanted to implement that into my style.

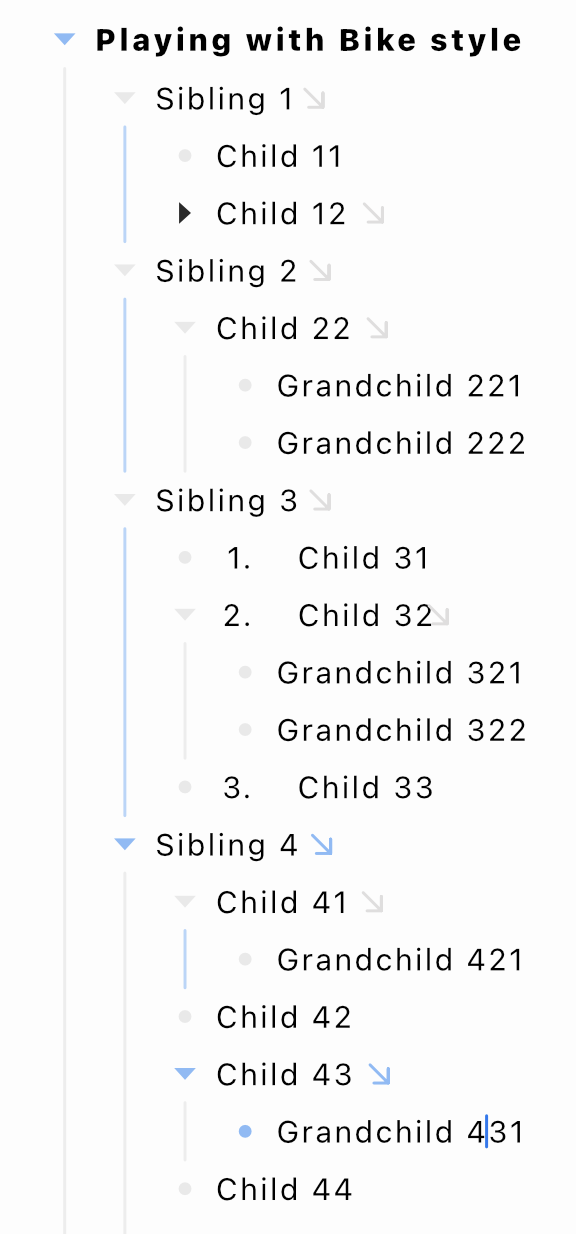

Here’s a mockup I made a longe time ago:

At that point my idea was to do it only with colouring the elements that’s already there (this was way before extensions) — but something like your solution is obviously much clearer.

[Gorgonzola]

Not sure when I’ll have the time to get back to this but once I have a prototype that’s editor-style-agnostic, I’ll post a link to GitHub repo.

[Gorgonzola]

I tried messing with this some more, but I’m getting consistent crashes while using the Outline explorer and typing:

.*/

Basically anytime I add the / to any relative path, I get a crash.

[Gorgonzola]

OK, here’s the link to the (unbuilt) standalone extension:

bike-jncustom-extensions/src/bullet-threading.bkext at...

Once you build it, theoretically this should work with any editor style to various degrees of visual appeal.

There are a few things I don’t like about the current implementation:

1. It relies on setting @bullet-threading attributes to rows. These get added and deleted as you move the caret around the outline to track the threading path, but it still means you see an extra attribute in the files, and the file gets an ‘edited’ state as soon as you navigate between rows. If you save the outline, the attribute will save with it, which means on next open, you’ll see where you left the caret until you pass through that row again. It’s possible that you end up with the attribute saved in multiple places.

I want to fix this somehow, but I can’t figure out how to access current row and its ancestors on the fly in a better way. As I reported above, I wanted to explore using .selection() = caret or similar in style context alone but I get crashes if I add / to that relative outline path. This bugs me because .selection()=caret/parent:: clearly works, but not .selection()=caret/ancestor-or-self::.

2. Visually, it’s still not done. I want it to give colour to the row handles along the thread, and make it round corners nicely.

3. In very long outlines, where you have to scroll to get back up to parent, the thread disappears for some reason. I have no idea why this happens.

In any case, try it out for yourself, it’s pretty fun seeing this working in Bike.

[jessegrosjean]

@Gorgonzola

In any case, try it out for yourself, it’s pretty fun seeing this working in Bike.

Ha, looking at this now, and my brain is a bit stretched by layout logic to draw vertical line from child to parent. It makes sense, but I wouldn’t have thought of it.

[jessegrosjean]

@Gorgonzola

As I reported above, I wanted to explore using .selection() = caret or similar in style context alone but I get crashes if I add / to that relative outline path. This bugs me because .selection()=caret/parent:: clearly works, but not .selection()=caret/ancestor-or-self::.

Yes, this should be possible, you shouldn’t need to add those @bullet-threading attributes. I think the simplest correct match rule for this will be:

./descendant-or-self::selection() = caret

But unfortunately (as you say) that will crash in current Bike release. I have fixed problem locally though, and it works… with that said it’s not going to be very efficient in larger outlines. Will require full descendants traversal for each row in the viewport and (in the viewport) also includes all ancestors of rows in the viewport. End result is lots of traversals.

Because of this I think I will add an optimized editor function for this.

I guess something like:

selection-ancestor() -> caret|range|block|null

So that function would return caret if the current matched row contained a descendant with caret selection. Make sense?

[Gorgonzola]

@jessegrosjean

Ha, looking at this now, and my brain is a bit stretched by layout logic to draw vertical line from child to parent.

Hah, that’s a very restrained way of describing bad coding, and totally my fault. I’m sure even with AI I could have given it better instructions on what I wanted to do, but this seemed to work.

@jessegrosjean

So that function would return caret if the current matched row contained a descendant with caret selection. Make sense?

I’ll definitely try this out once it’s available. I’ve just realised that setting @bullet-threading attributes all over the outline also affects undo functions, and that’s unacceptable.

[jessegrosjean]

@Gorgonzola

Hah, that’s a very restrained way of describing bad coding, and totally my fault. I’m sure even with AI I could have given it better instructions on what I wanted to do, but this seemed to work.

Well no! I would have just said it was impossible to draw a line from child to parent.

[jessegrosjean]

In case I loose track of this. Here’s the query you should use to match these rows in the next Bike preview release:

`.selection() != null or selection-ancestor() != null`

That will be fast, should match all the rows you need, and won’t requite any logic in the app context.

[complexpoint]

@jessegrosjean

layout logic to draw vertical line from child to parent.

Not sure if this kind of general (non-style) logic makes any relevant sense:

For JXA osascript into Bike extension context:

(Lines from parent rows to child rows)

Expand disclosure triangle to view JS source

(() => {
    "use strict";

    // ------------ SIMPLE LINES TO CHILDREN -------------

    const main = () =>
        Application("Bike")
            .evaluate({
                script: `${linesToChildren}`
            });


    // linesToChildren :: () -> IO String
    const linesToChildren = () => {

        const bikeMain = () =>
            drawForest(
                bike.frontmostOutlineEditor.outline.root.children
            );

        // ------------------- TREE LINES --------------------

        // draw :: Tree String -> [String]
        const draw = node => {

            // shifted :: String -> String -> [String] -> [String]
            const shifted = (first, other, xs) =>
                xs.map((x, i) =>
                    (0 < i ? other : first) + x
                );


            // drawSubTrees :: [Tree String] -> [String]
            const drawSubTrees = xs => {
                const n = xs.length;

                return 0 < n
                    ? ["│"].concat(
                        1 < n
                            ? shifted("├─ ", "│  ", draw(xs[0]))
                                .concat(
                                    drawSubTrees(xs.slice(1))
                                )
                            : shifted("└─ ", "   ", draw(xs[0]))
                    )
                    : [];
            };


            return root(node).split("\n").concat(
                drawSubTrees(nest(node))
            );
        };

        // drawForest :: [Tree String] -> String
        const drawForest = trees =>
            trees.map(drawTree).join("\n");


        // drawTree :: Tree String -> String
        const drawTree = tree =>
            draw(tree).join("\n");


        const root = row =>
            row.text.string;

        const nest = row =>
            row.children;


        // MAIN ---
        return bikeMain();
    };

    // MAIN ---
    return main();
})();

[jessegrosjean]

@complexpoint

Not sure if this kind of general (non-style) logic makes any relevant sense:

For JXA osascript into Bike extension context:

I love that sort of plain text layout, but the part that I was having to stretch my brain around was this style decoration positing logic:

let bulletY = layout.firstLine.centerY
line.y = bulletY
line.height = layout.top
line.anchor.y = 1

I wouldn’t have realized that layout.top is also the height we want (still not quite sure, but seems to work). And then tricky to get into right position by setting y anchor to 1.
